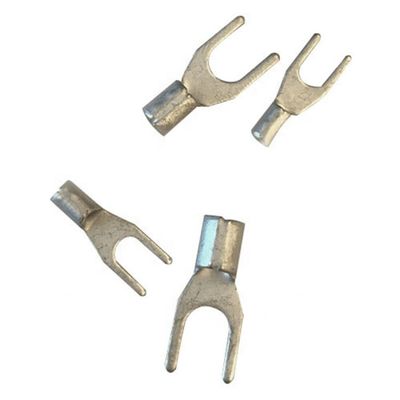

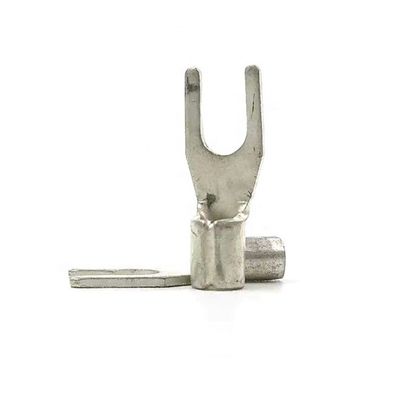

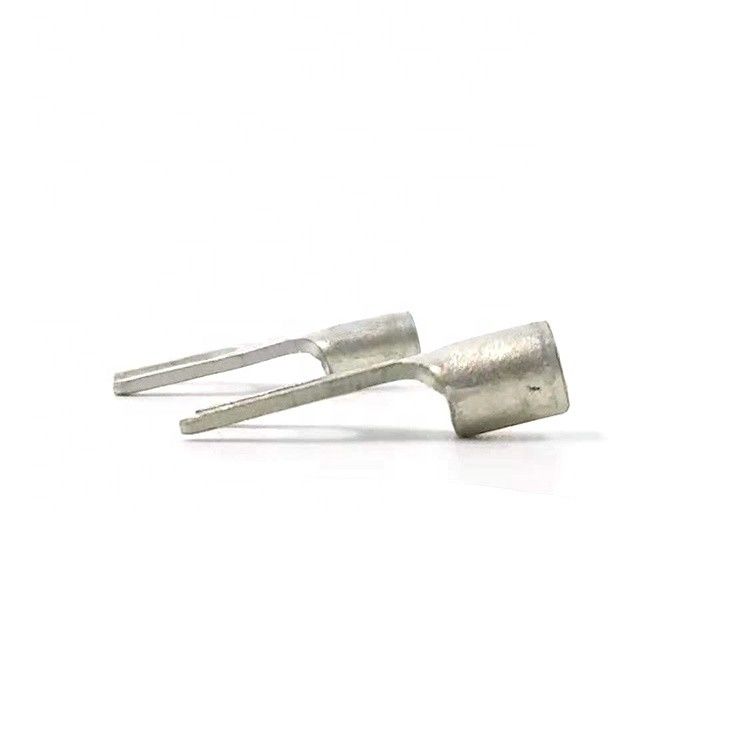

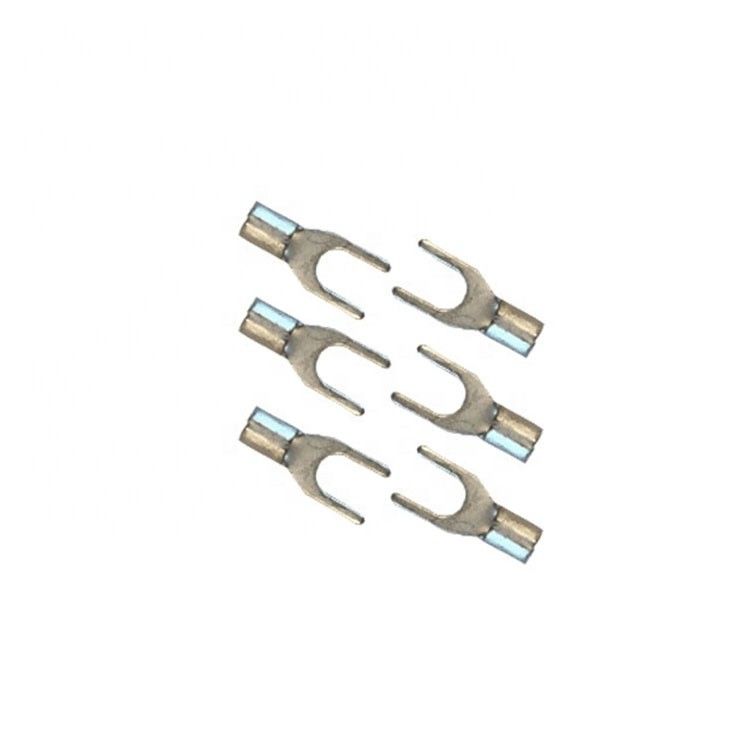

Seri SNB Terminal Spade Tidak Terisolasi Konektor Garpu Tembaga Tipe U Lugs Kabel
| Nomor Barang: | KE Terminal Cincin Non-terisolasi |
| Nama Produk: | Terminal Sekop SNB |
| Warna: | Tembaga kaleng |
| Bahan: | Kuningan atau Tembaga,Pelapisan: Timah |
| Aplikasi: | Sambungan kawat dan kabel |
| tipe produk | Terminal |
Rentang kawat: 0,5-1,5㎜², AWG:22~16, Imax=19A
| Nomor barang | Ukuran pejantan | Dimensi (mm) | ||||||
| d2 | B | L | F | E | D | d | ||
| SNB1.25-3.2 | #4 | 3.2 | 5.7 | 16.0 | 6.5 | 4.8 | 3.4 | 1.7 |
| SNBS1.25-3.5 | #6 | 3.7 | 5.7 | 16.0 | 6.5 | |||
| SNBL1.25-3.5 | #6 | 3.7 | 6.4 | 16.0 | 6.5 | |||
| SNBS1,25-4 | #8 | 4.3 | 6.4 | 16.0 | 6.5 | |||
| SNBM1.25-4 | #8 | 4.3 | 7.2 | 16.0 | 6.5 | |||
| SNBL1.25-4 | #8 | 4.3 | 8.1 | 16.0 | 6.5 | |||
| SNBS1.25-5 | #10 | 5.3 | 8.1 | 16.0 | 6.5 | |||
| SNBL1.25-5 | #10 | 5.3 | 9.5 | 16.0 | 6.5 | |||
| SNBS1.25-6 | 1/4 | 6.4 | 9.5 | 16.0 | 6.5 | |||
| SNBL1.25-6 | 1/4 | 6.4 | 12.0 | 22.0 | 11.0 | |||
| SNB1.25-8 | 16/5 | 8.4 | 14.5 | 23.5 | 12.5 | |||
Rentang kawat: 1,5-2,5㎜², AWG:16~14, Imax=27A
| Nomor barang | Ukuran pejantan | Dimensi (mm) | ||||||
| d2 | B | L | F | E | D | d | ||
| SNB2-3.2 | #4 | 3.2 | 5.7 | 16.0 | 6.5 | 4.8 | 4.1 | 2.3 |
| SNBS2-3.5 | #6 | 3.7 | 5.7 | 16.0 | 6.5 | |||
| SNBL2-3.5 | #6 | 3.7 | 6.0 | 16.0 | 6.5 | |||
| SNBS2-4 | #8 | 4.3 | 6.4 | 16.0 | 6.5 | |||
| SNBM2-4 | #8 | 4.3 | 7.2 | 16.0 | 6.5 | |||
| SNBL2-4 | #8 | 4.3 | 8.1 | 16.0 | 6.5 | |||
| SNBS2-5 | #10 | 5.3 | 8.1 | 16.0 | 6.5 | |||
| SNBL2-5 | #10 | 5.3 | 9.5 | 16.0 | 6.5 | |||
| SNBS2-6 | 1/4 | 6.4 | 9.5 | 16.0 | 6.5 | |||
| SNBL2-6 | 1/4 | 6.4 | 12.0 | 22.0 | 11.0 | |||
| SNB2-8 | 16/5 | 8.4 | 14.5 | 23.5 | 12.5 | |||
Rentang kawat: 2.5-4㎜², AWG:14~12, Imax=37A
| Nomor barang | Ukuran pejantan | Dimensi (mm) | ||||||
| d2 | B | L | F | E | D | d | ||
| SNB3.5-3 | #4 | 3.2 | 5.7 | 18.3 | 7.0 | 6.0 | 5.0 | 3.0 |
| SNB3.5-4 | #8 | 4.3 | 8.0 | 18.3 | 7.0 | |||
| SNB3.5-5 | #10 | 5.3 | 8.0 | 18.3 | 7.0 | |||
| SNB3.5-6 | 1/4 | 6.4 | 12.0 | 21.5 | 12.1 | |||
Rentang kawat: 4-6㎜², AWG:12~10, Imax=48A
| Nomor barang | Ukuran pejantan | Dimensi (mm) | ||||||
| d2 | B | L | F | E | D | d | ||
| SNB5.5-3.5 | #6 | 3.7 | 8.3 | 19.5 | 7.5 | 6.8 | 5.6 | 3.4 |
| SNBS5.5-4 | #8 | 4.3 | 8.3 | 19.5 | 7.5 | |||
| SNBL5.5-4 | #8 | 4.3 | 9.0 | 19.5 | 7.5 | |||
| SNB5.5-5 | #10 | 5.3 | 9.0 | 19.5 | 7.5 | |||
| SNBS5.5-6 | 1/4 | 6.4 | 9.0 | 19.5 | 7.5 | |||
| SNBL5.5-6 | 1/4 | 6.4 | 12.0 | 25.5 | 12.0 | |||
| SNB5.5-8 | 16/5 | 8.4 | 14.0 | 24.5 | 11.5 | |||
Rentang kawat: 6-25㎜², AWG:8~4
| Nomor barang | Ukuran pejantan | Dimensi (mm) | Imax | ||||||
| d2 | B | L | F | E | D | d | |||
| SNB8-4 | #8 | 4.3 | 8.7 | 23.0 | 6.0 | 8.5 | 7.2 | 4,5 | 62A |
| SNB8-5 | #10 | 5.3 | 12.0 | 24.5 | 5.7 | 8.5 | 7.2 | 4,5 | 62A |
| SNB8-6 | 1/4 | 6.4 | 12.0 | 24.5 | 5.7 | 8.5 | 7.2 | 4,5 | 62A |
| SNB8-8 | 16/5 | 8.4 | 14.5 | 28.0 | 8.3 | 8.5 | 7.2 | 4,5 | 62A |
| SNB14-6 | 1/4 | 6.4 | 12.0 | 28.0 | 7.5 | 10.5 | 9.0 | 5.8 | 88A |
| SNB14-8 | 16/5 | 8.4 | 14.0 | 28.0 | 7.5 | 10.5 | 9.0 | 5.8 | 88A |
| SNB22-8 | 16/5 | 8.4 | 14.0 | 34.5 | 9.0 | 12.0 | 11.5 | 7.7 | 115A |
FAQ:
1. Apakah Anda pabrik atau perusahaan dagang?
Ya, kami adalah produsen di Wenzhou, Cina.Kami dapat memberikan harga yang kompetitif & layanan purna jual.
2. Bisakah kami mencetak logo/situs web/nama perusahaan kami pada produk?
Ya, logo Anda dapat dicetak sesuai permintaan Anda.kami dapat menawarkan layanan OEM.
3. Apa lead time untuk pesanan reguler?
7-15 hari sebagai jumlah pesanan
4. Dapatkah Anda memberikan sampel?Apakah sampel gratis?
Ya, sampel dapat diberikan dengan biaya pengiriman untuk dikumpulkan.
5. Bisakah Anda mengubah ukuran untuk pelanggan?
Ya, ukuran dapat disesuaikan, untuk lebih jelasnya, silahkan hubungi kami dengan bebas.
6. Bagaimana dengan layanan purna jual?
Setiap komentar disambut, kami akan menyelesaikan masalah aplikasi Anda.
